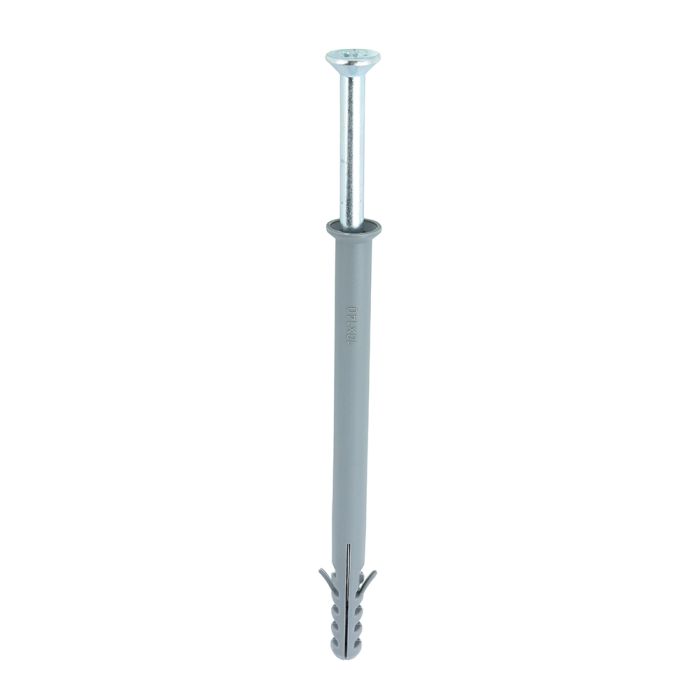

10x140 NYLON FRAME FIXING 100no. Per Box 10140NFF

SKU
BSC-60003035
A versatile and reliable fixing for attaching framework to brick, block, stone, masonry and concrete.



Anti-rotation lugs help prevent turning during installation

Plug Dia. mm : 10.0

Plug Length mm : 140

Screw Size mm : 5.5 x 145

Recess Type : Pozi

Drill Hole Dia. mm : 10.0

Max Fixture Thickness mm : 90

Min Drill Hole Depth mm : 60
£30.00 £25.00
/ Each

Sign in or Register for trade prices
Delivery
Select Postcode to See Availability
Collection
Select Branch to See Stock
Add for Delivery Click & Collect
A versatile and reliable fixing for attaching framework to brick, block, stone, masonry and concrete.



Anti-rotation lugs help prevent turning during installation

Plug Dia. mm : 10.0

Plug Length mm : 140

Screw Size mm : 5.5 x 145

Recess Type : Pozi

Drill Hole Dia. mm : 10.0

Max Fixture Thickness mm : 90

Min Drill Hole Depth mm : 60
Features
More Information
Product Finish Zinc
Product Material Carbon Steel
Product Net Weight kg 3.43
Manufacturer Bullet 1 Anti-rotation lugs help prevent turning during installation
Manufacturer Bullet 2 Plug Dia. mm : 10.0
Manufacturer Bullet 3 Plug Length mm : 140
Manufacturer Bullet 4 Screw Size mm : 5.5 x 145
Manufacturer Bullet 5 Recess Type : Pozi
Packaged Length mm 236mm
Manufacturer Bullet 6 Drill Hole Dia. mm : 10.0
Packaged Width mm 190mm
Manufacturer Bullet 7 Max Fixture Thickness mm : 90
Pallet Cage Width mm 279mm
Manufacturer Bullet 8 Min Drill Hole Depth mm : 60
Pallet Cage Length mm 394mm
Pallet Cage Height mm 206mm
Pallet Cage Weight kg 11.52
Pallet Cage Barcode 5056110840222
