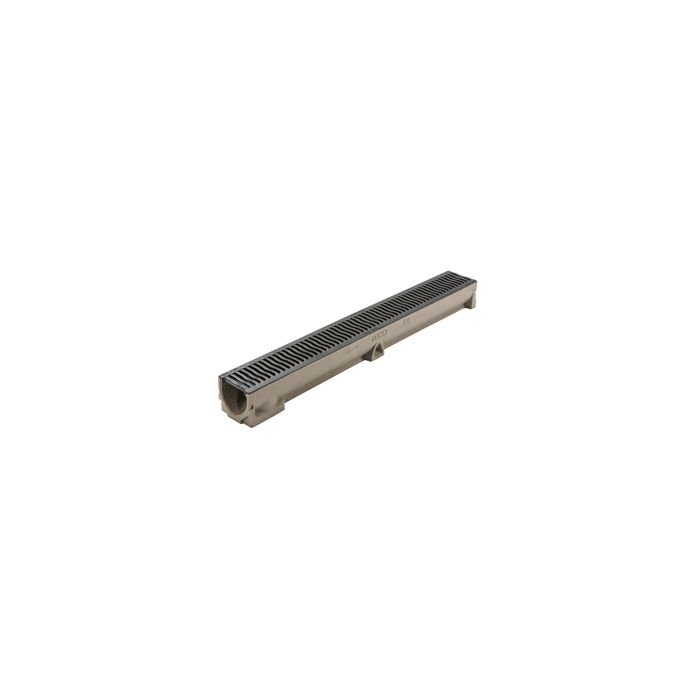

ACO RainDrain B125 Channel with Cast Iron Grate – 1 Metre

ACO RainDrain B125 Channel with Cast Iron Grate – 1 Metre

The ACO RainDrain B125 Channel with Cast Iron Grate (1 Metre) is a robust and reliable linear drainage system designed for domestic and light commercial applications. Manufactured from lightweight polymer concrete, this channel offers exceptional durability and resistance to weathering, while the heavy-duty cast iron grating provides a strong and long-lasting surface finish capable of withstanding vehicle loads up to class B125.

Product Features/Specifications:

• 1-metre ACO RainDrain channel with B125 load-rated cast iron grate
• Manufactured from high-strength polymer concrete
• Load class B125 – suitable for car parks, driveways, and light traffic areas
• Male/female channel joints for simple connection and alignment
• Lightweight design for easy installation
• Corrosion-resistant cast iron grating for long service life
• CE marked and fully compliant with BS EN 1433

Detailed Product Benefits:

The ACO RainDrain B125 Channel System provides effective surface water management while maintaining an attractive and professional appearance. The robust cast iron grate ensures reliable performance in vehicle traffic areas such as domestic driveways and small car parks. Its modular 1-metre sections allow for quick installation, and the polymer concrete body provides excellent durability with minimal maintenance requirements.

Applications and Versatility:

Ideal for use in:

• Domestic driveways and paved areas
• Patios and pathways
• Courtyards and garages
• Small car parks and light traffic zones

Features & Benefits List:

• Load Class B125 (up to 12.5 tonnes)
• Durable polymer concrete construction
• Heavy-duty cast iron grating
• Quick and easy to install
• Excellent flow capacity and strength
• Resistant to frost, corrosion, and chemicals
• Suitable for domestic and light commercial use

Technical Specifications:

• Product Type: Linear Drainage Channel
• Brand: ACO
• Model: RainDrain B125 with Cast Iron Grate
• Length: 1000mm
• Width: 118mm (approximate external)
• Depth: 97mm (approximate external)
• Material (Channel): Polymer Concrete
• Material (Grate): Cast Iron
• Load Class: B125 (to BS EN 1433)
• Weight: Approx. 8–9kg per channel
• Connection Type: Male/female interlocking joints
• Colour: Black grate / grey channel
• Certification: CE Marked

Additional Information:

The ACO RainDrain B125 Channel with Cast Iron Grate provides a high-quality surface water drainage solution that combines performance and aesthetics. Suitable for installation in both residential and light commercial settings, it offers easy maintenance and a professional finish.

Our experienced team can provide advice on selecting the right drainage system for your project, including layout planning, channel sizing, and installation guidance.

Delivery is available using our Hiab-equipped vehicles for efficient on-site offload, or collection can be arranged from our Glasgow and Edinburgh depots.
